high efficiency cheap price 100 liter home use solar geyser

FOB Reference Price:Get Latest Price
US $99.6-268.8 / Sets | 50 Set/Sets Please think about the destination charge for LCL (Min. Order)
Report Suspicious Activity
Quick Details
Evacuated Tube
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Housing Material:
CB, CE, RoHS, CCC,ISO,Solar Keymark,SRCC
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
inner tank:
SUS304-2B 0.4mm
outer tank:
PVDF/colored steel/SUS
galvanized steel/aluminium alloy/SUS
vacuum tube:
3-target all glass tube
electric booster:
frame angle:
25 degree to 45 degree
people use:
4-5 people
tube length:
assistant tank:
1000 Set/Sets per Week new advanced producing machines have imported
Packaging & Delivery
Packaging Details
cartons for full container
wooden boxes fro samples
FOB Shanghai or Ningbo
Lead Time :
Shipped in 19 days after payment
 Production Description
home solar power system, solar panel price
1. Technical datas:

2.Product show:

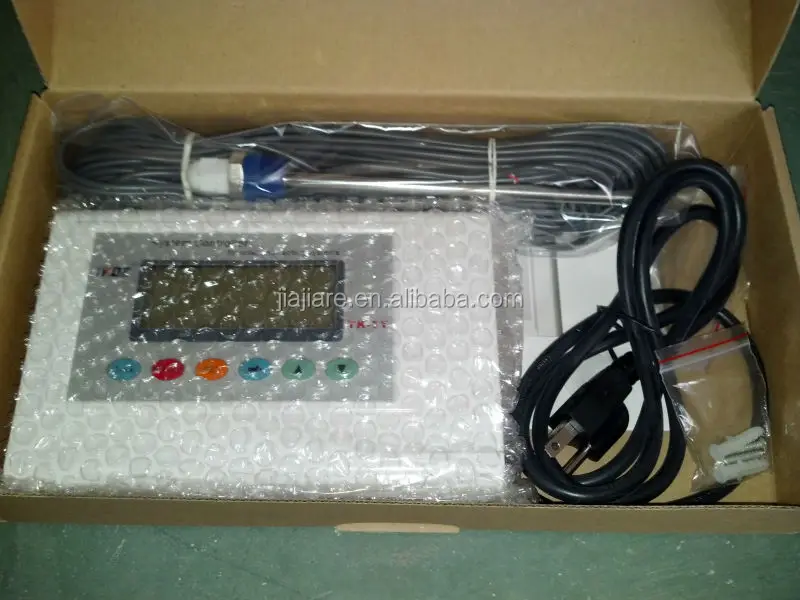

3. Non-pressure solar water heater accessories
4.Water tank technical datas:
 inner tankSUS 304-2B stainless steel, 0.41mm thickness
inner tank diameter310mm, 360mm
outer tankgalvanized steel, 0.30mm thickness
Outer tank diameter460mm, 470mm,480mm
Capacity100L, 150L, 200L, 300L
Tank insulating layer50-60mm high-density polyurethane foamed
Foam pressure32kg/m3 minimum
Heat reservation72 hours
WeldingArgon arc welding
Vacuum tube type3 target tube AL-N-AL/SS/CU coated
Outer Glass Tube Diameter58mm
Inner Glass Tube Diameter47mm
Length of the Vacuum Tube1800mm
Thickness of the Glass Tube1.6mm
Material of bracketGalvanized steel  1.5mm - black color
Structure of bracketFlexibility for flat or slope roof
Angle of bracket28 30 45 degree
Screw for bracketSUS 202 stainless steel 8mm diameter

High quality silicone rubber polymer

5. Working principle:

6. Making process and packing( original pictures taken from factory)

  7. Attention to installation

  •  Clearance of remains and sundries in water tank should be done ahead of installation in the purpose of avoiding walling up in or out vents, which may make water tank split up or deflated.
  • Do not load water when it is suuny. Better to load water at night or early in the morning expecially for the new unit. As the temperature of vacuum tube can reach 270°C at the highest. When water flowing at this time, vacuum tubes will be broken.
  •  When loading water at a high water level, do not turn on the inlet valve openly but let water flow slowly to the tank, or the inner tank will be broken due to the expansion of high pressure.
  •  It is inappropriate to load water at a low water level, which will result in hot water in the tank reflowing to water pipe
  • Before having a bath, it is necessary to avoid scalding with hand to testing the temperature of water.
  •  If electrical heater is installed, it should be cut off when you shower.

  8. Jiajiare Service and certifications

  • We offer customers 5 years for whole solar systems;
  • Carton design for customs is free offered when goods sent by container
  • When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
  • 1% extra vacuum tubes, slicone rings will be sent for free.
  • It's hoped that our solar system can save you more money as well as protect our environment.
9. FAQ


Our Services

1. Problems solving service:

All your inquiries, online messages will be anwered in 24 hours; all your e-mails will be replied in 48 hours.

2.Free sample service

One or two samples below  100L  will be free to our clients.

3.OEM service:

we are a solar water manufacturer, we provide the free OEM for the container quantity clients, no matter 20feet container or 40HQ container.

4.After service:

    1).Tech support:we will provide all the tech support ,including the install manual  the advertisement, the prepayments and selling.

    2).Refunding and exchanging: we will provide the free refund and exchange for the broken products in the warranty.but we will  make some evaluation before we make the complement.

    3).Annual visit: we will make a visit to our client to have a local visit and meeting to make our business better.




1.Payment terms:

 1).T/T:100% for LCL business.30% T/T for FCL business:30% T/T before production and 70% before shipment.

2).L/C:just for 40HQ container quantity and the time should be less than 60 days.

2.Delivery time:

1):LCL quantity in 7 working days.

2):20 feet quantity in 12 working days and 40HQ container in 15 working days.


1).3years for whole system

2).10 years for vacuum tubes collector, 3 years for frame,3 years for the tank .


5 sets.

5. Additional services

We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc.
